Interface: Statewide Emergency Operations Center - TRIO ISP

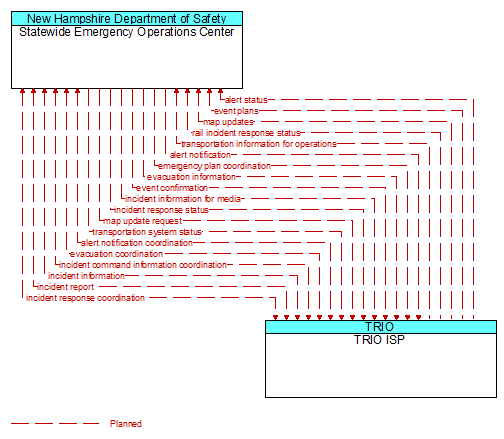

Statewide Emergency Operations Center to TRIO ISP Interface Diagram

Architecture Flow Definitions

alert notification  (Planned)  Applicable ITS Standards

Notification of a major emergency such as a natural or man-made disaster, civil emergency, or child abduction for distribution to the public. The flow identifies the alert originator, the nature of the emergency, the geographic area affected by the emergency, the effective time period, and information and instructions necessary for the public to respond to the alert. This flow may also identify specific information that should not be released to the public.

alert notification coordination  (Planned)  Applicable ITS Standards

Coordination of emergency alerts to be distributed to the public. This includes notification of a major emergency such as a natural or man-made disaster, civil emergency, or child abduction for distribution to the public and status of the public notification.

alert status  (Planned)  Applicable ITS Standards

Information indicating the current status of the emergency alert including identification of the traveler and driver information systems that are being used to provide the alert.

emergency plan coordination  (Planned)  Applicable ITS Standards

Information that supports coordination of emergency management plans, continuity of operations plans, emergency response and recovery plans, evacuation plans, and other emergency plans between agencies. This includes general plans that are coordinated prior to an incident and shorter duration tactical plans that are prepared during an incident.

evacuation coordination  (Planned)  Applicable ITS Standards

Coordination of information regarding a pending or in-process evacuation. Includes evacuation zones, evacuation times, evacuation routes, forecast network conditions, and reentry times.

evacuation information  (Planned)  Applicable ITS Standards

Evacuation instructions and information including evacuation zones, evacuation times, and reentry times.

event confirmation  (Planned)  Applicable ITS Standards

Confirmation that special event details have been received and processed.

event plans  (Planned)  Applicable ITS Standards

Plans for major events possibly impacting traffic.

incident command information coordination  (Planned)  Applicable ITS Standards

Information that supports local management of an incident. It includes resource deployment status, hazardous material information, traffic, road, and weather conditions, evacuation advice, and other information that enables emergency or maintenance personnel in the field to implement an effective, safe incident response.

incident information  (Planned)  Applicable ITS Standards

Notification of existence of incident and expected severity, location, time and nature of incident. As additional information is gathered and the incident evolves, updated incident information is provided. Incidents include any event that impacts transportation system operation ranging from routine incidents (e.g., disabled vehicle at the side of the road) through large-scale natural or human-caused disasters that involve loss of life, injuries, extensive property damage, and multi-jurisdictional response. This also includes special events, closures, and other planned events that may impact the transportation system.

incident information for media  (Planned)  Applicable ITS Standards

Report of current desensitized incident information prepared for public dissemination through the media.

incident report  (Planned)  Applicable ITS Standards

Report of an identified incident including incident location, type, severity and other information necessary to initiate an appropriate incident response.

incident response coordination  (Planned)  Applicable ITS Standards

Incident response procedures and current incident response status that are shared between allied response agencies to support a coordinated response to incidents. This flow provides current situation information, including a summary of incident status and its impact on the transportation system and other infrastructure, and current and planned response activities. This flow also coordinates a positive hand off of responsibility for all or part of an incident response between agencies.

incident response status  (Planned)  Applicable ITS Standards

Status of the current incident response including a summary of incident status and its impact on the transportation system, traffic management strategies implemented at the site (e.g., closures, diversions, traffic signal control overrides), and current and planned response activities.

map update request  (Planned)  Applicable ITS Standards

Request for a map update which could include a new underlying map or map layer updates.

map updates  (Planned)  Applicable ITS Standards

Map update which could include a new underlying static or real-time map or map layer(s) update.

rail incident response status  (Planned)  Applicable ITS Standards

Status of the rail systemís response to current incidents.

transportation information for operations  (Planned)  Applicable ITS Standards

Information on the state of transportation system operations including traffic and road conditions, advisories, incidents, transit service information, weather information, parking information, and other related data.

transportation system status  (Planned)  Applicable ITS Standards

Current status and condition of transportation infrastructure (e.g., tunnels, bridges, interchanges, TMC offices, maintenance facilities). In case of disaster or major incident, this flow provides an assessment of damage sustained by the surface transportation system including location and extent of the damage, estimate of remaining capacity and necessary restrictions, and time frame for repair and recovery.
