Interface: Commercial Vehicles - Portable Thermal Imaging Devices

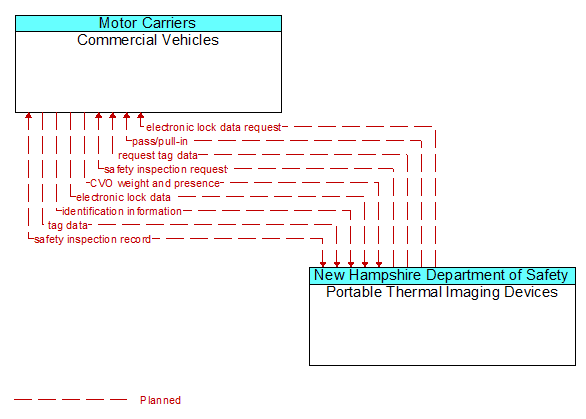

Commercial Vehicles to Portable Thermal Imaging Devices Interface Diagram

Architecture Flow Definitions

CVO weight and presence  (Planned)

Physical attribute of commercial vehicle that can be measured (for example, weight, number of axels, axel spacing, etc.).

electronic lock data  (Planned)  Applicable ITS Standards

Notification to roadside (via transponder) of the presence and status of electronic cargo locks.

electronic lock data request  (Planned)  Applicable ITS Standards

Request from roadside for data regarding presence and status of electronic cargo locks.

identification information  (Planned)

The physical characteristics of a commercial vehicle that can be used to determine a vehicle's identity, such as a license plate number, USDOT number, ICC number, bar code, etc.

pass/pull-in  (Planned)  Applicable ITS Standards

Command to commercial vehicle to pull into or bypass inspection station.

request tag data  (Planned)  Applicable ITS Standards

Request for tag information including credit identity, stored value card cash, etc.

safety inspection record  (Planned)  Applicable ITS Standards

Record containing results of commercial vehicle safety inspection.

safety inspection request  (Planned)  Applicable ITS Standards

Request for safety inspection record.

tag data  (Planned)  Applicable ITS Standards

Unique tag ID and related vehicle information.
