Interface: NHDOT Field Devices - Wayside Equipment

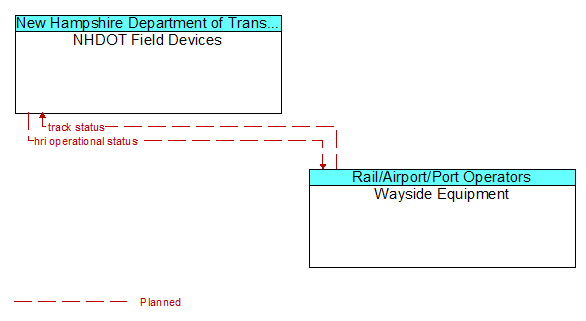

NHDOT Field Devices to Wayside Equipment Interface Diagram

Architecture Flow Definitions

hri operational status  (Planned)

Status of the highway-rail grade crossing equipment including both the current state or mode of operation and the current equipment condition.

track status  (Planned)

Current status of the wayside equipment and notification of an arriving train.
